Product Overview

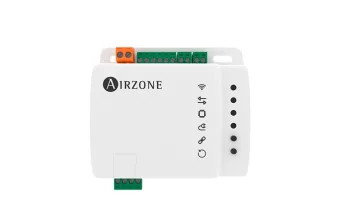

Airzone AZAI6WSPDA0 AIDOO Pro WiFi Controller resolves integration problems with HVAC units and smart thermostats. Aidoo Pro adapter is installed into your indoor unit and manages the smart thermostat’s dry contact input and communicates through the Cloud API with the smart thermostat Cloud service. The result is that users’ real needs are fully communicated between the Cloud platforms, enabling a truly smart use of Inverter/VRF units with intact features. Wireless connectivity of your indoor unit becomes available via your phone or tablet. Each indoor unit you want to control requires its own AIDOO adapter, however, the Airzone app allows you to control a single unit, a group of units or an entire system (as long as each unit has an adapter). It will work with units with S21 protocol.
AIDOO Pro features include:
- Dual Wi-FI communications (2.4/5 GHz)
- Possibility of integration via Local API and Cloud API
- Control of the parameters of the unit
- Communication errors detection
- Temperature and operating mode time schedules
- Multi-user and multi-session
- Port for integration via Modbus/BACnet protocol
- Third party smart thermostat integrations (3PTI)
- On/Off output and input
- Automatic mode change
- Temperature limits for hot and cold
Some functions available to you include ON/OFF, mode, set-point, fan speed, louver position, room temperature and error alert status from an iOS/Android smartphone. It is also compatible with Alexa and Google Home for voice control of your system. There are several functions available to you via the Airzone Cloud (dependent on your indoor unit capabilities):
- Auto Mode - your system will change automatically between heating and cooling
- Fan Mode - fan will run without heating or cooling
- Heating Mode
- Cooling Mode
- Dry Mode
- Schedule - 7 days schedule
- Multi-user and multi-session
The Wireless Interface Adapter installs easily on or inside the indoor unit and set up is quick once the app is downloaded. Registration and login are required but once complete, all connected units within your home network will be visible and controllable!
Compatible indoor units include both Daikin Single Zone and Multi-Zone Units with the following prefixes:
- Wall Mounted - CTXS, FTK*, FTX*, FTXG, FTXR, FTXS units
- Concealed Ducted - CDXS, FDXS units
- Floor Standing - FVXS units
*ALL FTX/FTK** indoor units require an additional adaptor in order to communicate with the Airzone AZAI6WSPDA0. The 9,000 and 12,000 BTU FTX and FTK** units require the interface adaptor KRP067A41E and the 15,000, 18,000 and 24,000 BTU FTX/FTK** units require interface adaptor KRP980B2E. These interface adaptors need to be installed and connected between the indoor unit and the translation adaptor giving them the S21 connector required to operate.
