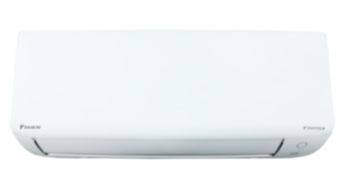

Daikin FTXF09AXVJU Oterra Series 9000 BTU Class Indoor Wall Unit - Heat and Cool - R32 Refrigerant

Sku:
DAIKIN-FTXF09AXVJU
Usually Leaves Warehouse in 2 - 3 Business Days
$569.00

THIS IS THE INDOOR UNIT ONLY. PLEASE SEE DAIKIN-15191909-A FOR A FULL SINGLE ZONE SYSTEM (INCLUDING THE INDOOR AND OUTDOOR UNITS).

The Daikin Oterra Series boasts R-32 low-GWP refrigerant. R32 is up to 12% more efficient than R410A, resulting in lower Global Warming Potential (GWP). The lower the GWP, the better for the environment. The Oterra Series features an inverter compressor which better maintains the comfort level in your space. An inverter compressor helps to minimize temperature fluctuations by providing ideal amount of comfort, continuously. Rather than a hard stop when the set temperature is achieved, the compressor is continually cycling up and down to maintain your set comfort level. The Oterra Series will cool when outdoor temperatures are from 50°F up to 115°F and will heat when outdoor temperatures are between 5°F and 65°F. Extended cooling operation (to 5°F) can be achieved with some field adjustments and the addition of a wind baffle.

The FTXF09AXVJU in combination with the RXF09AXVJU corresponding outdoor unit is an extremely efficient system. The 9,000 BTU system features excellent ratings including 21.0 SEER2, 10.2 HSPF2 and an EER2 of 12.5.

In addition to its modern styling with wipe clean flat panel, the indoor unit offers several outstanding features including:
  • Wide angle louvers with Vertical Auto Swing (up and down)
  • Auto Fan Speed, Fan Only, Dry Function, Auto Operation
  • Quiet operation
  • Energy Saving Function
  • Sleep Mode

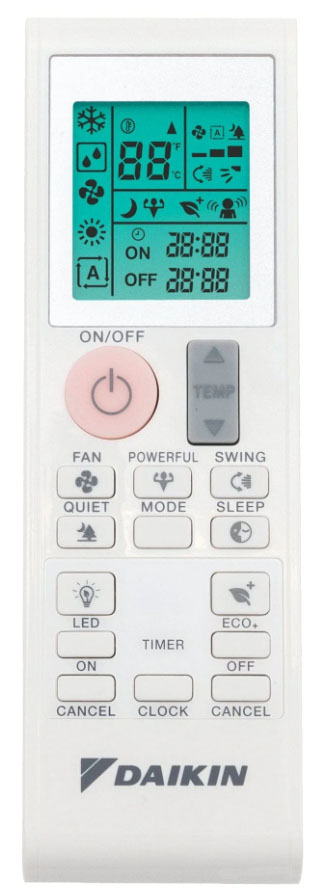

  • Backlit Remote
  • Catechin Filter / Green Tea Filter - a natural anti-bacterial substance found in green tea leaves that gets rid of germs and neutralizes odors
  • Titanium Apatite Photocatalytic Air Purifying Filter - air purifying filter and deodorizing in a single unit
  • Auto-Restart - system remembers the last settings and restarts when power is restored
  • 3 Step Fan, Auto, Quiet and Turbo
  • Self Diagnosis

The indoor unit includes a backlit remote but the system also offers additional control options. The system is WiFi compatible with the addition of the AZAI6WSCDKB adapter. This adapter gives you access to the DKN Cloud App. The DKN Cloud App gives you the ability to control you system from anywhere. It also makes your system compatible with several Daikin One Thermostats. These are Cloud Connected thermostats that also allow you to give your contractor access to Daikin One services through the app. The app will notify the contractor when your system needs maintenance as well as providing performance information.

The Oterra Series provides energy efficient, comfort control and a streamlined wall mounted look. Whether you're enhancing a single room or adding on an entire wing, the system's space-saving, modular design is ideal for set-apart areas like a garage office or nursery.

This unit must be installed by a qualified, licensed HVAC technician.
FREE SHIPPING ON ALL ORDERS!
Daikin FTXF09AXVJU Oterra Series 9000 BTU Class Indoor Wall Unit - Heat and Cool - R32 Refrigerant
  • Daikin FTXF09AXVJU Oterra Series 9000 BTU Class Indoor Wall Unit - Heat and Cool - R32 Refrigerant
  • Daikin FTXF09AXVJU Oterra Series 9000 BTU Class Indoor Wall Unit - Heat and Cool - R32 Refrigerant

Product Overview


THIS IS THE INDOOR UNIT ONLY. PLEASE SEE DAIKIN-15191909-A FOR A FULL SINGLE ZONE SYSTEM (INCLUDING THE INDOOR AND OUTDOOR UNITS).

The Daikin Oterra Series boasts R-32 low-GWP refrigerant. R32 is up to 12% more efficient than R410A, resulting in lower Global Warming Potential (GWP). The lower the GWP, the better for the environment. The Oterra Series features an inverter compressor which better maintains the comfort level in your space. An inverter compressor helps to minimize temperature fluctuations by providing ideal amount of comfort, continuously. Rather than a hard stop when the set temperature is achieved, the compressor is continually cycling up and down to maintain your set comfort level. The Oterra Series will cool when outdoor temperatures are from 50°F up to 115°F and will heat when outdoor temperatures are between 5°F and 65°F. Extended cooling operation (to 5°F) can be achieved with some field adjustments and the addition of a wind baffle.

The FTXF09AXVJU in combination with the RXF09AXVJU corresponding outdoor unit is an extremely efficient system. The 9,000 BTU system features excellent ratings including 21.0 SEER2, 10.2 HSPF2 and an EER2 of 12.5.

In addition to its modern styling with wipe clean flat panel, the indoor unit offers several outstanding features including:
  • Wide angle louvers with Vertical Auto Swing (up and down)
  • Auto Fan Speed, Fan Only, Dry Function, Auto Operation
  • Quiet operation
  • Energy Saving Function
  • Sleep Mode
  • Backlit Remote
  • Catechin Filter / Green Tea Filter - a natural anti-bacterial substance found in green tea leaves that gets rid of germs and neutralizes odors
  • Titanium Apatite Photocatalytic Air Purifying Filter - air purifying filter and deodorizing in a single unit
  • Auto-Restart - system remembers the last settings and restarts when power is restored
  • 3 Step Fan, Auto, Quiet and Turbo
  • Self Diagnosis

The indoor unit includes a backlit remote but the system also offers additional control options. The system is WiFi compatible with the addition of the AZAI6WSCDKB adapter. This adapter gives you access to the DKN Cloud App. The DKN Cloud App gives you the ability to control you system from anywhere. It also makes your system compatible with several Daikin One Thermostats. These are Cloud Connected thermostats that also allow you to give your contractor access to Daikin One services through the app. The app will notify the contractor when your system needs maintenance as well as providing performance information.

The Oterra Series provides energy efficient, comfort control and a streamlined wall mounted look. Whether you're enhancing a single room or adding on an entire wing, the system's space-saving, modular design is ideal for set-apart areas like a garage office or nursery.

This unit must be installed by a qualified, licensed HVAC technician.

Tech Specs

Indoor Unit Type:
Wall Mount

Performance Data

Cooling BTUs:
9000
Includes Heat Pump:
Yes
Heat Pump BTUs:
10000

System Data

Dehumidification (pts/hr):
1.28
CFMs:
142 / 249 / 322 / 431 / 466 (Q / L / M / H / T)
Fan Speeds:
5
Min. Indoor Noise Level (dBA):
19
Indoor Noise Level (dBA):
19 / 30 / 37 / 44 (Q / L / M / H)

Features

Control Type:
Hand Held Remote
Connectivity:
Module Available (Optional)
Wired Thermostat Optional:
Yes

Piping / Line Set Requirements

Line Set Liquid Line:
1/4"
Line Set Suction Line:
3/8"

Weights and Dimensions

Width (in.):
30.313
Depth (in.):
9.188
Height (in.):
11.333
Weight (lbs.):
19.8
California residents see Prop 65 WARNINGS

Warning WARNING!

Warning: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Product Warranty

Warranty Information

  • Limited Parts: 12 Years Limited Warranty if unit is properly registered online within 60 days of installation.
  • Labor: None
  • Commercial Use: 5 Years Limited Warranty

The warranty for this unit is for parts only, and does not cover labor or diagnostic services. Total Home Supply will handle all warranty parts requests for any mini split purchased from us, but installation and all troubleshooting for this unit must be performed by a licensed HVAC technician. Any fees the technician may charge are not reimbursable by the manufacturer or by Total Home Supply. Please call 877-847-0050 for more details or with any questions you may have regarding warranty information and installation of this unit.
