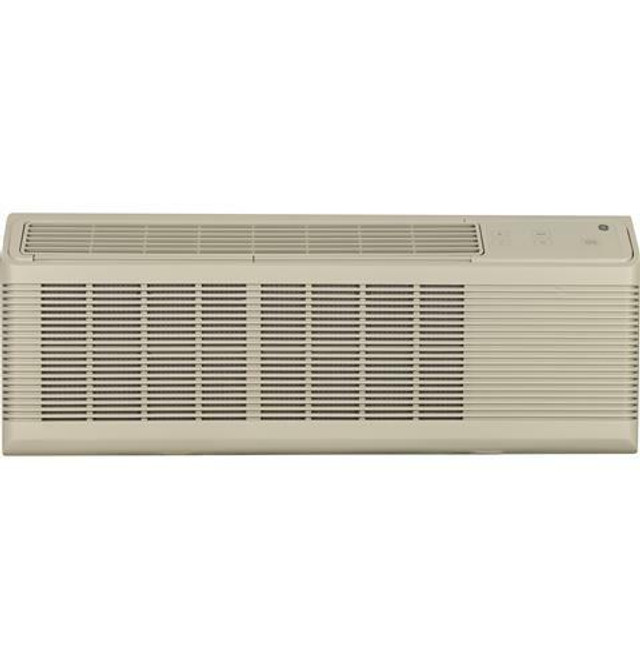

GE AZ45E07DAB 7000 BTU Class Zoneline PTAC Air Conditioner with Electric Heat - Power Cord Included

Sku:
GE-AZ45E07DAB
Please Call (877) 847-0050 for Availability
$1,075.00
For your convenience, we are including a required power cord of your choice with this unit. Choose either a standard power cord (included) or a hardwire kit ($20), each available in 15 amp or 20 amp.

With their new line of Zoneline PTAC units, GE has made significant improvements to their long-trusted product, both inside and out. Zoneline PTACs feature the same case dimensions as earlier models, but with a shallower front for more usable space and overall sleeker appearance. On the inside, a redesigned internal structure makes the servicing process easier and faster than ever before, providing a service diagnostics report to help technicians identify problems and a ‘quick connect’ feature that allows thermostat, central desk control, and external fan set-up in just seconds.

These improvements also guarantee better operation, overall, including the addition of two DC fan motors, which works to reduce noise by dialing in the exact airflow needed for each heating and cooling function. In fact, with a sound transmission class of 29, GE’s Zoneline units are the quietest PTACs on the market at reducing outside noise when compared to leading competitors. A large cross-flow barrier optimizes airflow for a low, balanced sound that is hardly noticeable, while a heavy-duty, baked-on mastic barrier covers the back of the unit for superior sound insulation. A weather barrier system seal around the perimeter of the unit keeps all noise and dirt outside, ensuring a better and more comfortable environment while the PTAC is in use.

GE Zoneline electric heat resistance PTACs (7000 - 9000 BTU) are also 8% more efficient than most other leading competitors in their class, cutting any building or establishment’s monthly heating costs significantly. Every unit is programmed to balance comfort with efficient operation, using smart technology to automatically select the right heat source to meet your room’s current needs. Specially designed heat & freeze sentinels work to prevent damage to the unit caused by overheating or freezing, while temperature limits are electronically preset to avoid temperature swings and save even more energy in the long run.

This item replaces GE AZ41E07DAB.
  • New, lighter color and sleeker appearance
  • Easy-to-use electronic touch controls with clear LED readout provide a user-friendly experience
  • Compatible with a wide variety of thermostats and energy management systems, including central desk control
  • Cross-flow blower, two DC fan motors, and 'smart fan' cooling and heating keep the unit quiet and efficient
  • Weather barrier system seal
  • Electronic, 7-step temperature limiting
  • Heat & freeze sentinels
  • Reversible louver style
  • Slide-in chassis
  • Rotary compressor
  • Fan speed control with fan cycle switch
  • Electronic micro computer control
  • Auto power recovery
  • 60 - 85 F temperature range
  • Rigid frame, slide-out filter
  • 3-position manual vent control
  • 2-position discharge grille
  • R-410A refrigerant
New installation requires a power cord, sleeve and a rear grille. Sleeve and grille are not included with the air conditioner (sold separately).
FREE SHIPPING ON ALL ORDERS!
GE AZ45E07DAB 7000 BTU Class Zoneline PTAC Air Conditioner with Electric Heat
  • GE AZ45E07DAB 7000 BTU Class Zoneline PTAC Air Conditioner with Electric Heat
  • GE AZ45E07DAB 7000 BTU Class Zoneline PTAC Air Conditioner with Electric Heat
  • GE AZ45E07DAB 7000 BTU Class Zoneline PTAC Air Conditioner with Electric Heat
  • GE AZ45E07DAB 7000 BTU Class Zoneline PTAC Air Conditioner with Electric Heat
  • GE AZ45E07DAB 7000 BTU Class Zoneline PTAC Air Conditioner with Electric Heat
  • GE AZ45E07DAB 7000 BTU Class Zoneline PTAC Air Conditioner with Electric Heat
  • GE AZ45E07DAB 7000 BTU Class Zoneline PTAC Air Conditioner with Electric Heat
  • GE AZ45E07DAB 7000 BTU Class Zoneline PTAC Air Conditioner with Electric Heat
  • GE AZ45E07DAB 7000 BTU Class Zoneline PTAC Air Conditioner with Electric Heat
  • GE AZ45E07DAB 7000 BTU Class Zoneline PTAC Air Conditioner with Electric Heat - Power Cord Included
  • +7
Product Video

Product Overview

For your convenience, we are including a required power cord of your choice with this unit. Choose either a standard power cord (included) or a hardwire kit ($20), each available in 15 amp or 20 amp.

With their new line of Zoneline PTAC units, GE has made significant improvements to their long-trusted product, both inside and out. Zoneline PTACs feature the same case dimensions as earlier models, but with a shallower front for more usable space and overall sleeker appearance. On the inside, a redesigned internal structure makes the servicing process easier and faster than ever before, providing a service diagnostics report to help technicians identify problems and a ‘quick connect’ feature that allows thermostat, central desk control, and external fan set-up in just seconds.

These improvements also guarantee better operation, overall, including the addition of two DC fan motors, which works to reduce noise by dialing in the exact airflow needed for each heating and cooling function. In fact, with a sound transmission class of 29, GE’s Zoneline units are the quietest PTACs on the market at reducing outside noise when compared to leading competitors. A large cross-flow barrier optimizes airflow for a low, balanced sound that is hardly noticeable, while a heavy-duty, baked-on mastic barrier covers the back of the unit for superior sound insulation. A weather barrier system seal around the perimeter of the unit keeps all noise and dirt outside, ensuring a better and more comfortable environment while the PTAC is in use.

GE Zoneline electric heat resistance PTACs (7000 - 9000 BTU) are also 8% more efficient than most other leading competitors in their class, cutting any building or establishment’s monthly heating costs significantly. Every unit is programmed to balance comfort with efficient operation, using smart technology to automatically select the right heat source to meet your room’s current needs. Specially designed heat & freeze sentinels work to prevent damage to the unit caused by overheating or freezing, while temperature limits are electronically preset to avoid temperature swings and save even more energy in the long run.

This item replaces GE AZ41E07DAB.
  • New, lighter color and sleeker appearance
  • Easy-to-use electronic touch controls with clear LED readout provide a user-friendly experience
  • Compatible with a wide variety of thermostats and energy management systems, including central desk control
  • Cross-flow blower, two DC fan motors, and 'smart fan' cooling and heating keep the unit quiet and efficient
  • Weather barrier system seal
  • Electronic, 7-step temperature limiting
  • Heat & freeze sentinels
  • Reversible louver style
  • Slide-in chassis
  • Rotary compressor
  • Fan speed control with fan cycle switch
  • Electronic micro computer control
  • Auto power recovery
  • 60 - 85 F temperature range
  • Rigid frame, slide-out filter
  • 3-position manual vent control
  • 2-position discharge grille
  • R-410A refrigerant
New installation requires a power cord, sleeve and a rear grille. Sleeve and grille are not included with the air conditioner (sold separately).

Tech Specs

General Features

Type of Through-the-Wall:
42" PTAC
Sleeve Required for Install:
Yes
Fits Sleeve Size (in.):
42
Refrigerant Type:
R410A (Not for Sale in CA or WA)
Compressor:
Standard
Energy Star:
No
Dehumidification (pts/hr):
1.7
CFMs:
233 / 348 (L / H)
Includes Heat Mode:
Yes
Heat Type:
Electric Resistance Only

Performance @208 Volt

Cooling BTUs (@208V):
7000
EER (@208V):
13.4
Cooling Amps (@208V):
2.6
Cooling Watts (@208V):
520
Electric Heat Strip Size (kW @208V):
1.9 @15 amps / 2.8 @20 amps
Electric Heating BTUs (@208V):
6600 / 9400
Electric Heating Amps (@208V):
9.6 / 13.6
Electric Heating Watts (@208V):
1960 / 2780

Performance @230 Volt

Cooling BTUs (@230V):
7200
EER (@230V):
13.4
Cooling Amps (@230V):
2.5
Cooling Watts (@230V):
535
Electric Heat Strip Size (kW - @230V):
2.4 @15 amps / 3.4 @20 amps
Electric Heating BTUs (@230V):
8100 / 11600
Electric Heating Amps (@230V):
10.5 / 14.9
Electric Heating Watts (@230V):
2400 / 3400

Features

Vent Location:
Front Top
Make-Up Air:
No
Energy Saver Mode:
No
Fan Speeds:
2
Control Type:
Electronic/Digital
Filter Access:
Rigid Frame; Slide-Out
Connectivity:
Not WiFi Compatible
24 Hour ON/OFF Timer:
No
Remote Control:
No
Fresh Air Intake:
Yes
Sleep Mode:
Yes

Weight and Dimensions

Overall Width (in.):
42
Overall Depth (in.):
20.375
Overall Height (in.):
16
Wall Cut-Out Width (in.):
42.25
Wall Cut-Out Height (in.):
16.25
Net Weight (lbs.):
110
Certifications:
UL / cUL / AHRI / NRCAN

Electrical Requirements

Voltage:
208-230V
Plug Face (NEMA):
6-15P / 6-20P
Circuit Breaker Size (Amps):
15 / 20
Cord Length:
6'
California residents see Prop 65 WARNINGS

Warning WARNING!

Warning: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Product Warranty

  • Parts Warranty - 5 years
  • Labor Warranty - 1 year
  • Sealed System Warranty - 5 years
