Product Overview

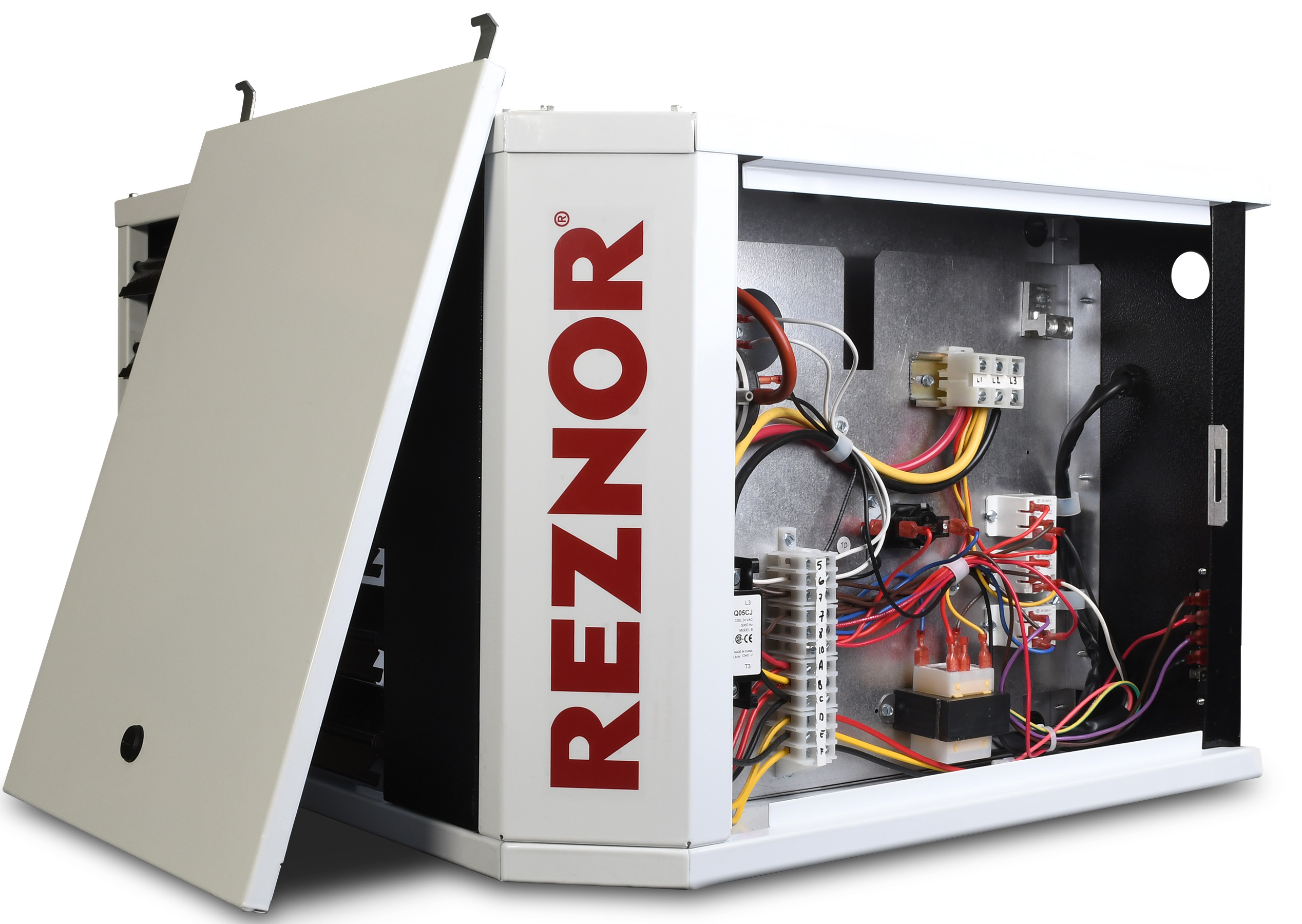

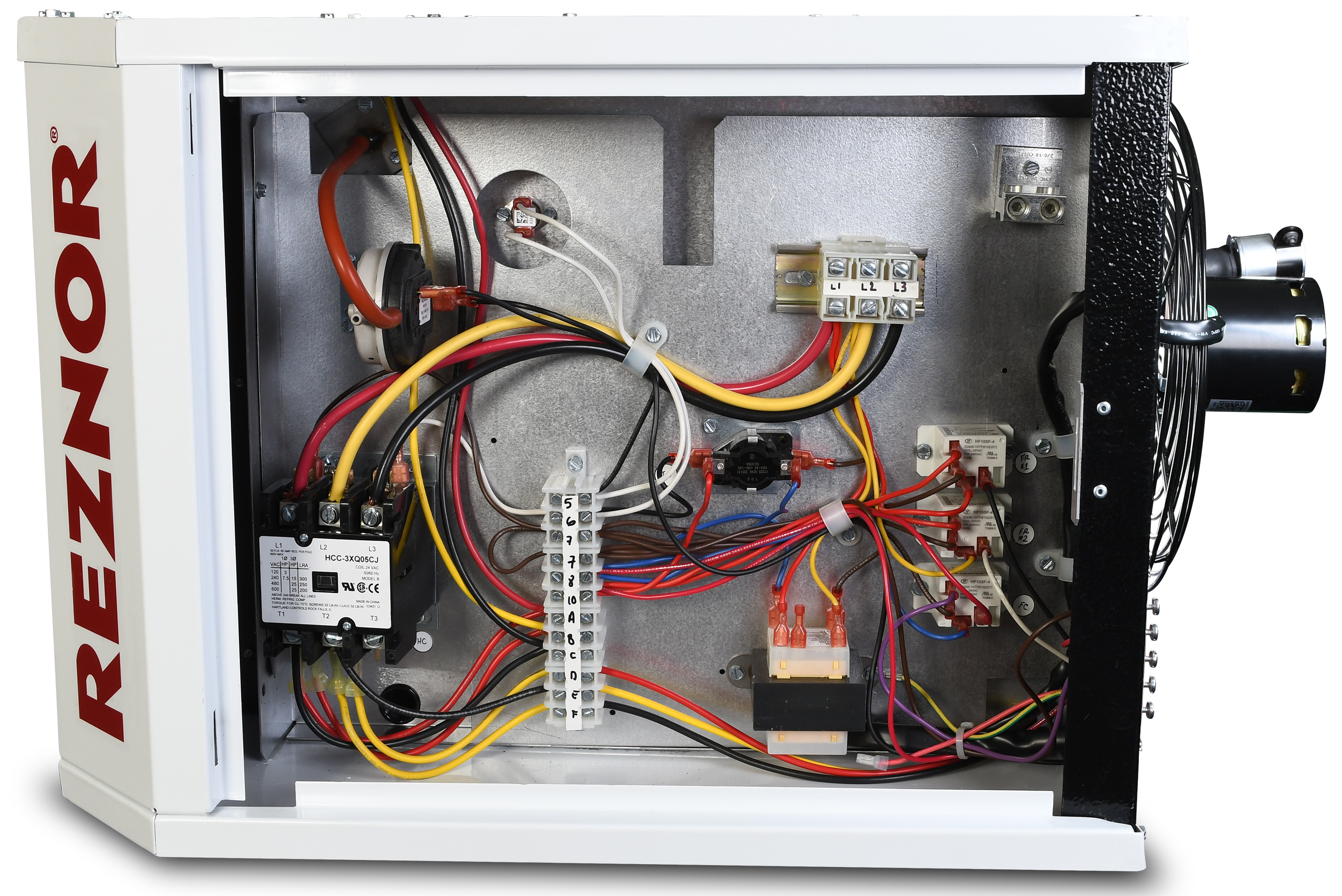

The Reznor EUH Series unit heaters are offered in multiple sizes from 3kW up to 30kW. The smaller electric unit heaters (EUH3-EUH10) are single stage heaters that operate with 208-240V electricity and are field convertible for single or 3-phase use. The larger EUH units (15 - 30kW) are two stage heaters. Each of the larger units are 3-phase units and available in supply voltage specific to that unit. Each unit includes an external terminal strip for 24V control connections on the rear of the unit. This unit can be controlled using several options from simple on/off to multi-stage thermostats. There is also a multi-unit control option if you have several units connected in the same space. The EUH line is BMS capable. Also included is a wall bracket for easy installation.

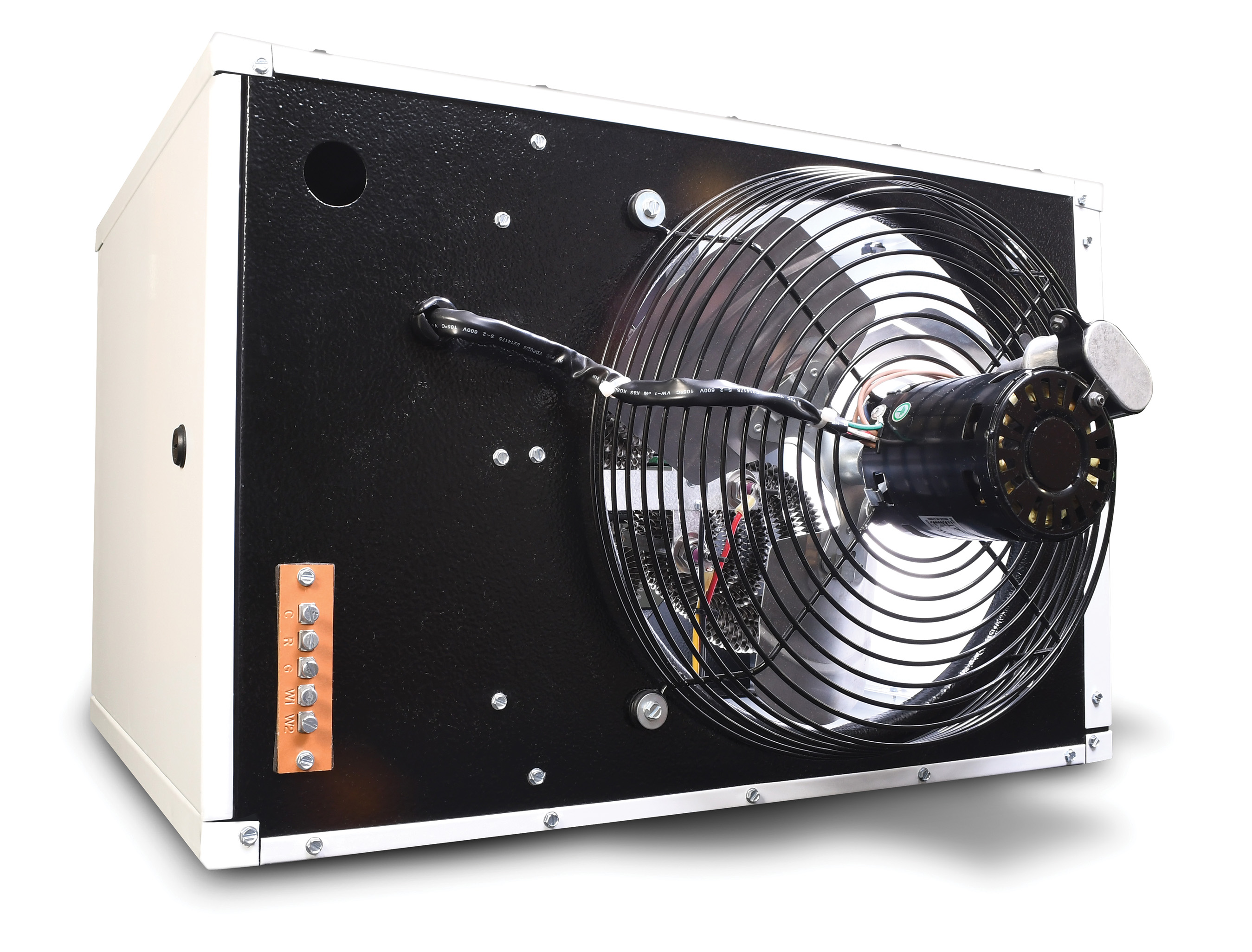

The EUH heaters feature a high temperature limit switch with automatic reset, internal overload protection. It has a 12 inch fan and the fan motor is designed for low-noise operation with a vibration- and noise-isolated fan motor. The discharge air is easily directed with its individually adjustable, horizontal louvers - allowing you to direct the heated air where you need it. Like other Reznor unit heaters, the sleek, white and black (with red logo) signature look with rounded corners and edges as well as no visible screws - it is perfect to blend in to any commercial or industrial application. Of course the electric unit heaters also include fully enclosed, stainless steel heating elements. When paired with zero emission, naturally-generated electricity, this unit supports sustainability and reduced greenhouse gasses.

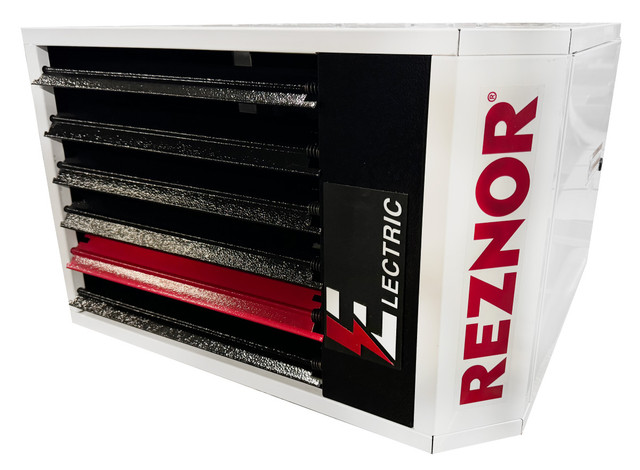

At 240V, the EUH10 offers a 10 kW / 10,000 Watt heater. It features a 2-speed fan giving you 191 min. / 957 max. CFMs and a temperature rise of 33°F. It is a powerful multi-phase heater and draws 41.7 amps when connected for 240V, single-phase use and 24.1 amps when wired for 240V, 3-phase use. Kilowatts and amperage draw is slightly lower when connected for 208V use.
The EUH unit heaters are designed to be used as primary heat sources across many industries including:
- Retail
- Showrooms
- Workshops
- Schools
- Sports Facilities
- Transportation Terminals
- Industrial Manufacturing
- Warehouse/Distribution
- Food & Beverage
- Pharmaceutical & Biotech
With the various heater sizing available, you are sure to find one that is right for the space you are trying to heat.
Tech Specs
General Features
Performance Data
System Data
Clearances
Weights and Dimensions
Electrical Requirements
Electrical Requirements @208V
Electrical Requirements @240V
WARNING!
Product Warranty
Parts Warranty: 30 Days After Installation or 13 Months from Date of Shipment, whichever occurs firstExtended four (4)-year, non-prorated warranty on all electrical and mechanical operating components
