Reznor EUH-5 5kW / 17,060 BTU Commercial / Industrial Multi-Phase Low-Static Axial Fan Electric Unit Heater - 208-240V

Sku:
REZNOR-EUH5
Usually Leaves Warehouse in 2 - 3 Business Days
$919.00

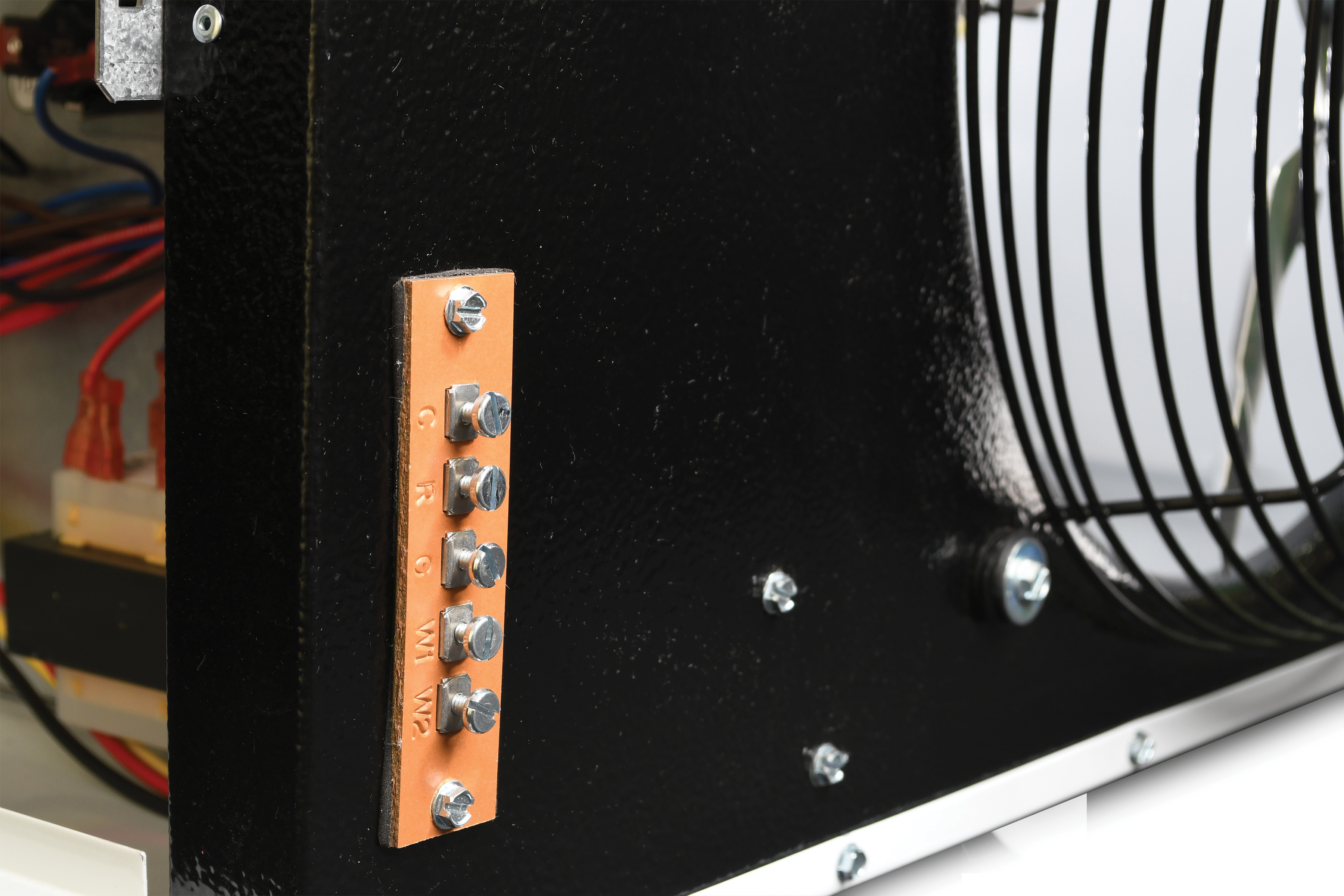

The Reznor EUH Series unit heaters are offered in multiple sizes from 3kW up to 30kW. The smaller electric unit heaters (EUH3-EUH10) are single stage heaters that operate with 208-240V electricity and are field convertible for single or 3-phase use. The larger EUH units (15 - 30kW) are two stage heaters. Each of the larger units are 3-phase units and available in supply voltage specific to that unit. Each unit includes an external terminal strip for 24V control connections on the rear of the unit. This unit can be controlled using several options from simple on/off to multi-stage thermostats. There is also a multi-unit control option if you have several units connected in the same space. The EUH line is BMS capable. Also included is a wall bracket for easy installation.

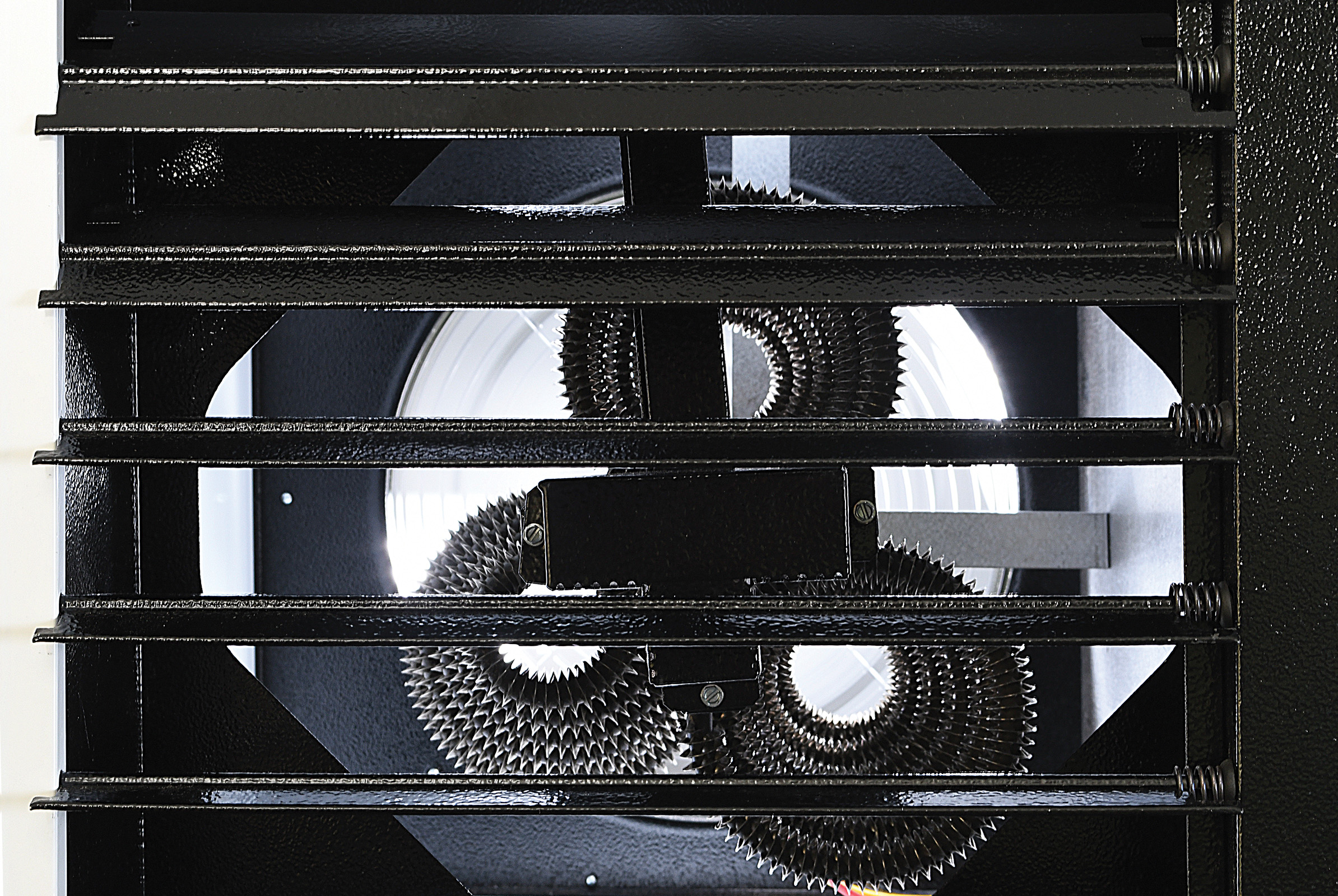

The EUH heaters feature a high temperature limit switch with automatic reset, internal overload protection. It has a 10 inch fan and the fan motor is designed for low-noise operation with a vibration- and noise-isolated fan motor. The discharge air is easily directed with its individually adjustable, horizontal louvers - allowing you to direct the heated air where you need it. Like other Reznor unit heaters, the sleek, white and black (with red logo) signature look with rounded corners and edges as well as no visible screws - it is perfect to blend in to any commercial or industrial application. Of course the electric unit heaters also include fully enclosed, stainless steel heating elements. When paired with zero emission, naturally-generated electricity, this unit supports sustainability and reduced greenhouse gasses.

At 240V, the EUH5 offers a 5 kW / 5,000 Watt heater. It features a 2-speed fan giving you 158 min. /479 max. CFMs and a temperature rise of 33°F. It is a powerful multi-phase heater and draws 22.4 amps when connected for 240V, single-phase use and 13.0 amps when wired for 240V, 3-phase use. Kilowatts and amperage draw is slightly lower when connected for 208V use.

The EUH unit heaters are designed to be used as primary heat sources across many industries including:

  • Retail
  • Showrooms
  • Workshops
  • Schools
  • Sports Facilities
  • Transportation Terminals
  • Industrial Manufacturing
  • Warehouse/Distribution
  • Food & Beverage
  • Pharmaceutical & Biotech

With the various heater sizing available, you are sure to find one that is right for the space you are trying to heat.



FREE SHIPPING ON ALL ORDERS!
Reznor EUH-5 5kW / 17,060 BTU Commercial / Industrial Multi-Phase Low-Static Axial Fan Electric Unit Heater - 208-240V
Product Video

Product Overview

The Reznor EUH Series unit heaters are offered in multiple sizes from 3kW up to 30kW. The smaller electric unit heaters (EUH3-EUH10) are single stage heaters that operate with 208-240V electricity and are field convertible for single or 3-phase use. The larger EUH units (15 - 30kW) are two stage heaters. Each of the larger units are 3-phase units and available in supply voltage specific to that unit. Each unit includes an external terminal strip for 24V control connections on the rear of the unit. This unit can be controlled using several options from simple on/off to multi-stage thermostats. There is also a multi-unit control option if you have several units connected in the same space. The EUH line is BMS capable. Also included is a wall bracket for easy installation.

The EUH heaters feature a high temperature limit switch with automatic reset, internal overload protection. It has a 10 inch fan and the fan motor is designed for low-noise operation with a vibration- and noise-isolated fan motor. The discharge air is easily directed with its individually adjustable, horizontal louvers - allowing you to direct the heated air where you need it. Like other Reznor unit heaters, the sleek, white and black (with red logo) signature look with rounded corners and edges as well as no visible screws - it is perfect to blend in to any commercial or industrial application. Of course the electric unit heaters also include fully enclosed, stainless steel heating elements. When paired with zero emission, naturally-generated electricity, this unit supports sustainability and reduced greenhouse gasses.

At 240V, the EUH5 offers a 5 kW / 5,000 Watt heater. It features a 2-speed fan giving you 158 min. /479 max. CFMs and a temperature rise of 33°F. It is a powerful multi-phase heater and draws 22.4 amps when connected for 240V, single-phase use and 13.0 amps when wired for 240V, 3-phase use. Kilowatts and amperage draw is slightly lower when connected for 208V use.

The EUH unit heaters are designed to be used as primary heat sources across many industries including:

  • Retail
  • Showrooms
  • Workshops
  • Schools
  • Sports Facilities
  • Transportation Terminals
  • Industrial Manufacturing
  • Warehouse/Distribution
  • Food & Beverage
  • Pharmaceutical & Biotech

With the various heater sizing available, you are sure to find one that is right for the space you are trying to heat.



Tech Specs

General Features

Installation Type:
Hanging - Ceiling or Wall
Fuel Type:
Electric
Certified Usage:
Commercial (Indoor Only)
Installation Kit:
Bracket Included

Performance Data

Heating BTUs:
17060
kW (@208V):
4.0
kW (@240V):
5.3

System Data

CFMs:
158 / 479 (L / H)
Discharge Air Temperature Rise (°F):
33
Blower:
Built-In
Remote:
Not Available
Fuse Block:
No
Oscillating:
No
Tip-Over Safety Switch:
No
Connectivity:
Not WiFi Compatible

Clearances

Min. Mounting Height (ft.):
6'
To Access Panel (in.):
21"
To Side Wall (in.):
1"
To Rear from Fan Motor (in.):
18"

Weights and Dimensions

Width (in.):
23.344
Depth (in.):
27.969
Height (in.):
15.25
Net Weight (lbs.):
50
Certifications:
UL, CSA

Electrical Requirements @208V

Voltage:
208V
Amps (@208/1/60):
19.4
Amps (@208/3/60):
11.3

Electrical Requirements @240V

Voltage:
240V
Amps (@240/1/60):
22.4
Amps (@240/3/60):
13.0
Circuit Breaker (Amps):
25
California residents see Prop 65 WARNINGS

Warning WARNING!

Warning: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Product Warranty

Parts Warranty: 30 Days After Installation or 13 Months from Date of Shipment, whichever occurs first

Extended four (4)-year, non-prorated warranty on all electrical and mechanical operating components
