Product Overview
Burners are certified to work with SPECIFIC Log Sets only. While there may be several allowable Log Sets for a specific burner, they are NOT universal. Using a burner with a non-compatible log set can lead to Fire, Carbon Monoxide Poisoning and Property Damage.

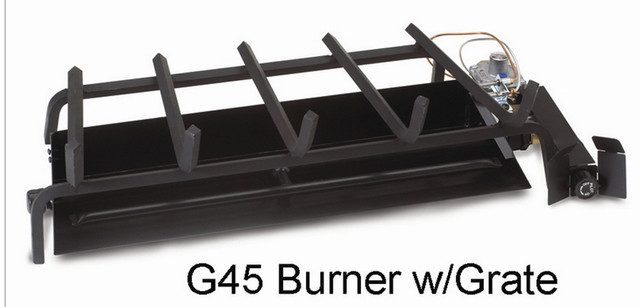

The G45 burner is a Triple T Burner. It consists of a main burner tube that extends down the middle and a smaller front flame burner that "T"s off the main burner. The additional front flame allows you to position the burner directly beneath the logs helping to accentuate the front flame. This specialized burner also gives you a nice bed of glowing embers under beautiful dancing flames. With its front pipe, there are three additional spaces for the flames to come through, adding more depth to your fire. The G45 burner, regardless of the pilot valve chosen, will still give you dancing flames across the length of the burner tubes and your glowing embers will glow nicely, for a more realistic fire.
The G45 Burner system includes:
- Burner pan
- Grate
- Glowing embers
- Vermiculite
- Burner clips
- Flex connector kit
- Damper clamp
- Assembled APK-11 on/off safety valve included with burner
The APK 11 is a basic on/off remote safety pilot kit. It includes a basic RR-1 On/Off remote control transmitter and receiver. It uses a standing pilot that stays lit. As long as the safety pilot is lit, the burner can be turned on and off from the remote control or manually with an on/off control inside the fireplace.
You can upgrade to RR-2 Deluxe Remote Control system with Thermostat, Timer, Clock and Room Temperature (sold separately).
Log Set sold separately.
| Burner Model | Minimum Fireplace Size | BTU Ratings | ||||
|---|---|---|---|---|---|---|
| Width* | Depth | Height | NG | LP | ||
| Front | Rear | |||||
| G45-16/19 | 29" | 22" | 11" | 17" | 40k | 30k |
| G45-18/20 | 30" | 24" | 13" | 17" | 70k | 45k |
| G45-24 | 34" | 28" | 13" | 17" | 90K | 65k |
| G45-30 | 40" | 34" | 16" | 17" | 95k | 75k |
| G45-36 | 46" | 40" | 16" | 17" | 110k | 90k |
| *The required widths allow for centering of the unit within the fireplace. For G45-**-02 models, add 2" to both the front and rear width. Depth requirements begin inside the ash lip if one exists. | ||||||
Tech Specs
General Features
Performance
Gas Requirements
Minimum Firebox Requirements
Requirements for 30" Logs
California residents see Prop 65 WARNINGS
