Product Overview
Burners are certified to work with SPECIFIC Log Sets only. While there may be several allowable Log Sets for a specific burner, they are NOT universal. Using a burner with a non-compatible log set can lead to Fire, Carbon Monoxide Poisoning and Property Damage.

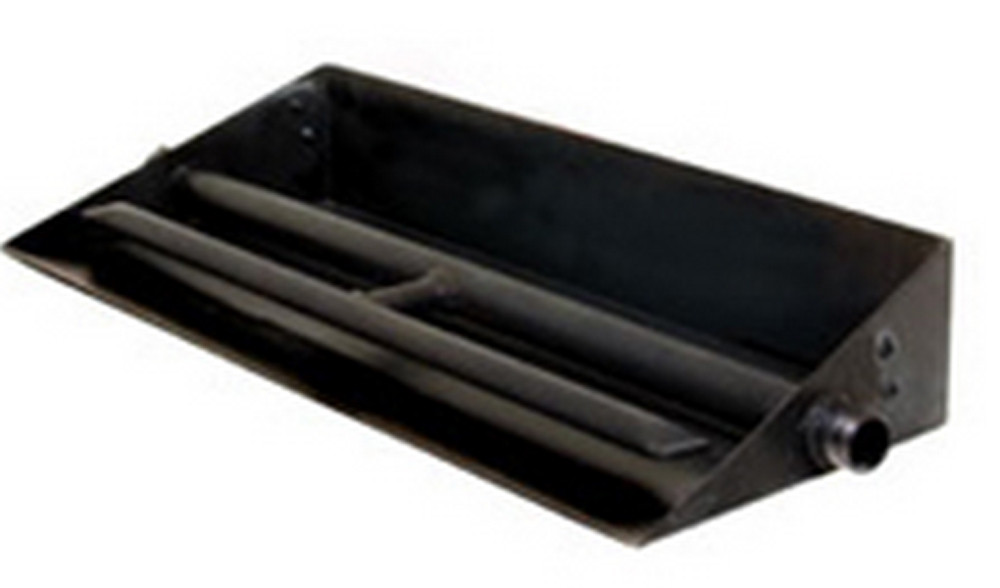

The GX45 burner is a Triple T burner system. It consists of a main burner tube that extends down the middle and a smaller front flame burner that "T"s off the main burner. The additional front flame allows you to position the burner directly beneath the logs helping to accentuate the front flame. This specialized burner also gives you a nice bed of glowing embers under beautiful dancing flames. With its front pipe, there are three additional spaces for the flames to come through, adding more depth to your fire. The G45 burner, regardless of the pilot valve chosen, will still give you dancing flames across the length of the burner tubes and your glowing embers will glow nicely, for a more realistic fire.
The GX45 Burner system for 24" log sets requiring a heavy duty grate includes:
- Burner pan
- Heavy Duty Grate
- Glowing embers
- Vermiculite
- Burner clips
- Flex connector kit
- APK-17 Automatic Pilot and Variable Remote included
Log Set sold separately.

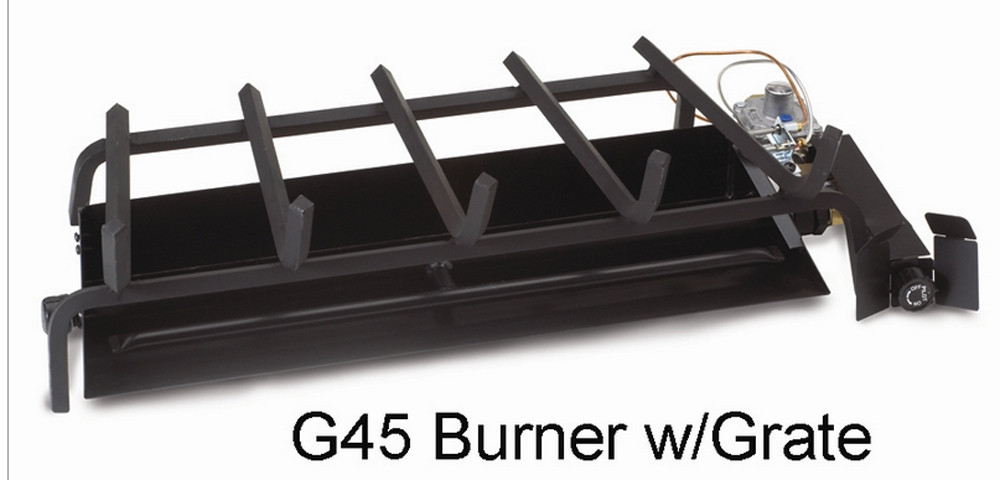

Burner shown in photo is standard grate and SPK-26 safety valve. This burner includes the heavy duty grate and APK-17 valve kit.
Tech Specs
General Features
Performance
Gas Requirements
Minimum Firebox Requirements
Requirements for 24" Logs
